Product Name

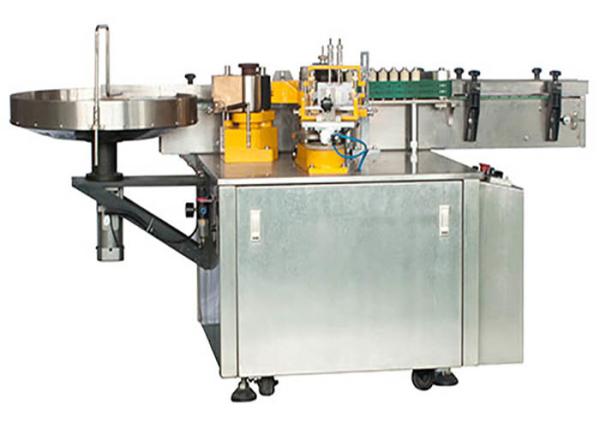

Cold Glue Labeler Conical Round Bottle Automatic Labeling Machine
Key Features:
● Labeling speed up to 5000 bottles/Hour
● Simple Straight Forward Operator Controls
● Stainless Frame
● Open Frame design,easy to adjust and change the label
● Variable Speed with stepless motor
● Bottle feed-in and collection platform as optional part
Specifications:
| Label speed | 80-100 pieces/minute |
| Bottle size | Φ20～60 mm |
| Label size | Length:50mm-100mm Width:30-90 |
| Presion | ±1mm |
| Power source & consumption | 1.5KW,220v,single phase, 50-60HZ(Optional) |
| Air consumption | 4-6Kg |
| Dimensions | 2100mm×900mm×1000 mm ( Length × Width × Height ) |
| Weight | 500KG |
| Working direction | Left → Right (or Right → Left) |
Industry Type(s)
● Cosmetic/personal care
● Household chemical
● Food&beverage
● Nutraceuticals
● Pharmaceuticals

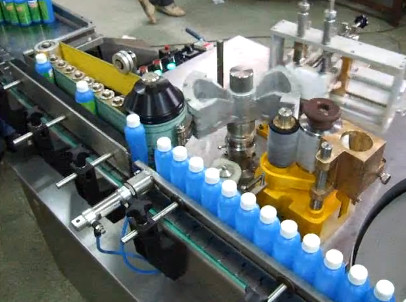

JHL-10 is suitable for small cylindrical container such as glass,plastic,PET bottle with precut paper label.The machine is economical and easy to operate.The performace is stable with a level off and good looking labeling result.The control system adopts convert motor system,the in line conveying bottle,supplying glue and label automatically.This automatic labeling system is ideal for food&beverage,medical industry,etc.
Q&A
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4: Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
