Fruit and vegetable basket washing machine Canned Vegetable Production Line Plastic basket washing machine
Features
1, The machine adopts SUS304 stainless steel mesh belt to transport part of the belt, running smoothly, long service life and other characteristics, in line with food hygiene requirements.
2, the transmission part of the speed motor, so that material cleaning speed adjustable time.
3, divided into three sections of cleaning, water can be recycled to save energy and water. Each section of the cleaning tank is equipped with multi-layer filter, to prevent nozzle clogging. With automatic water control device to prevent damage due to lack of water pump.

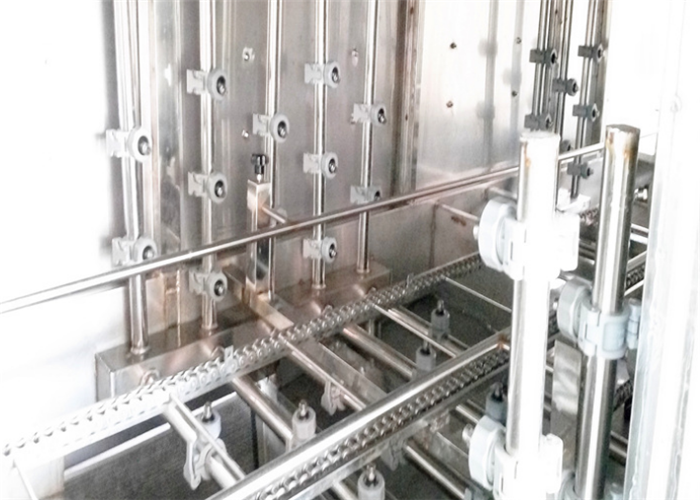

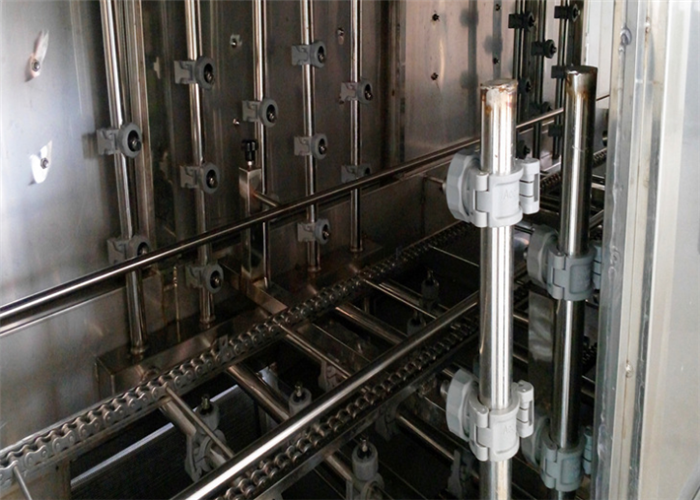

4. Equipment Overview: Equipment delivery part of the double-chain support crates. Sync forward. After the machine is turned on, it is fed manually to the chain of the spray cleaning machine or automatically fed by the conveyor. The lye is first sprayed onto the oil, then the hot water is sprayed in a high pressure and the water is sprinkled on the water. Three independent groups, external circulating water tank, filter can be easily extracted.
5, motor power: pre-wash 1.5KW, the main wash 5.5KW, water spray: 1.5KW total of three
6, equipment configuration: car thickness 2mm, 50 * 50 * 2mm square tube, shower pipe Φ38mm
7, electrical components using Chint Electric, the control box made of stainless steel.
Technical Parameters
Production capacity: 5-20 pcs / minute
Operating speed (r / min): Frequency
Washing temperature (℃): 25c ° -85c ° for the automatic control
Power (KW): 12.5KW steam heating
Heating method "optional": Steam heating
The maximum allowable size of the basket: 700 * 1200 * 400mm
Overall dimensions (mm): 5000 × 1130 × 1550
Service:
One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
Product Tags:
|
|

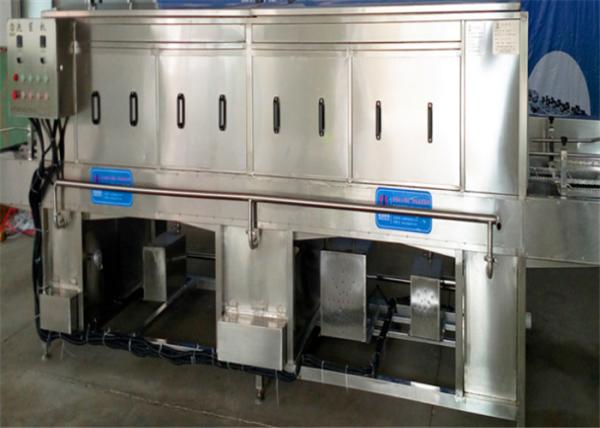

Steam Heating Vegetable Canning Equipment Plastic Basket Washing Machine Images
|
