Product Name
Vertical Round Cans Labeler High Speed Automatic Labeling Machine
Key Features:

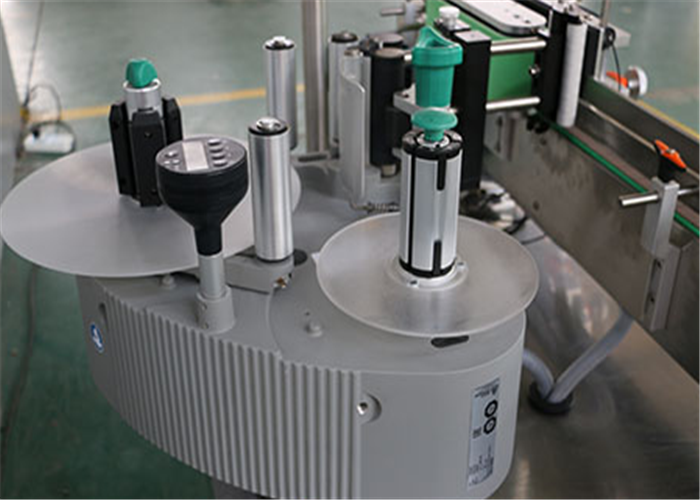

Servo from Germany imported labeling engine optional to meet different customer needs;
For stand-alone operation can choose to feed and receive turntable, so as to maximize the production efficiency;
The overall material of the equipment is the international standard S304 stainless steel and imported aluminum alloy, double anodized, will never rust and deformation;
Transparent label stickers are not blistering, sticker no folds;
The bottle dividing mechanism adopts big silicone wheel to separate bottles so that the bottles enter the labeling place equidistantly, which is stable and precise.

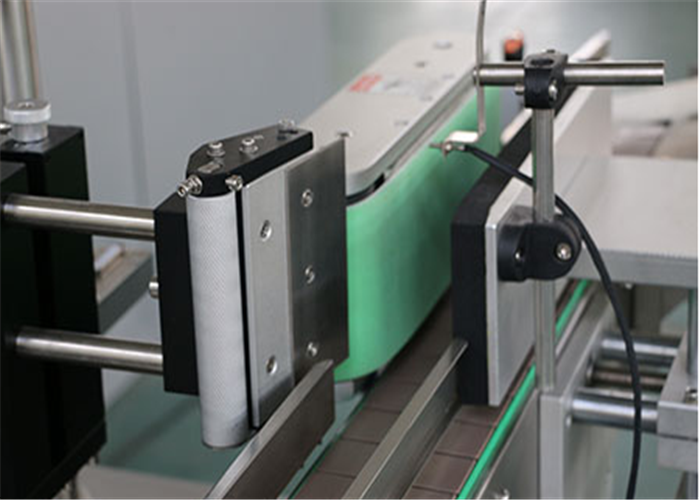

Labeling mechanism optional removable plastic belt or industrial belt to make the label more secure;
operating system:
Multi-functional man-machine interface, production count, parameter adjustment and other visual monitoring, with rich help function and fault display;
Automatic detection of label length and other functions;
Optional:
Optional hot stamping machine or Pen Maji flexible configuration;
Dedicated sensor for transparent and opaque labels;
Back-end configurable receiving turntable;
Barcode detection, with or without tag detection, remaining tag alarm function;
Specifications
Model PLM
Production (pieces / minute) 50-200 pieces / minute (with material and label size)
Labeling accuracy ± 1.0 mm
Label type sticker, transparent or opaque
The inner diameter of the label 76 mm
Label outside diameter 350 mm (max)
Label size length 10-300mm, height 10-250mm
Labeling object size diameter 20-100mm, height 30-260mm
Working pressure 0.6Mpa
Power 220VAC ± 10% 50Hz, 0.6Kw
Suitable ambient temperature 5-40 ℃, humidity 15-85% (non-condensing)
Weight (kg) 200kg
Machine size 1800 (L) 800 (W) 1500 (H) mm
Warranty:
One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
